Invert External Reservoir

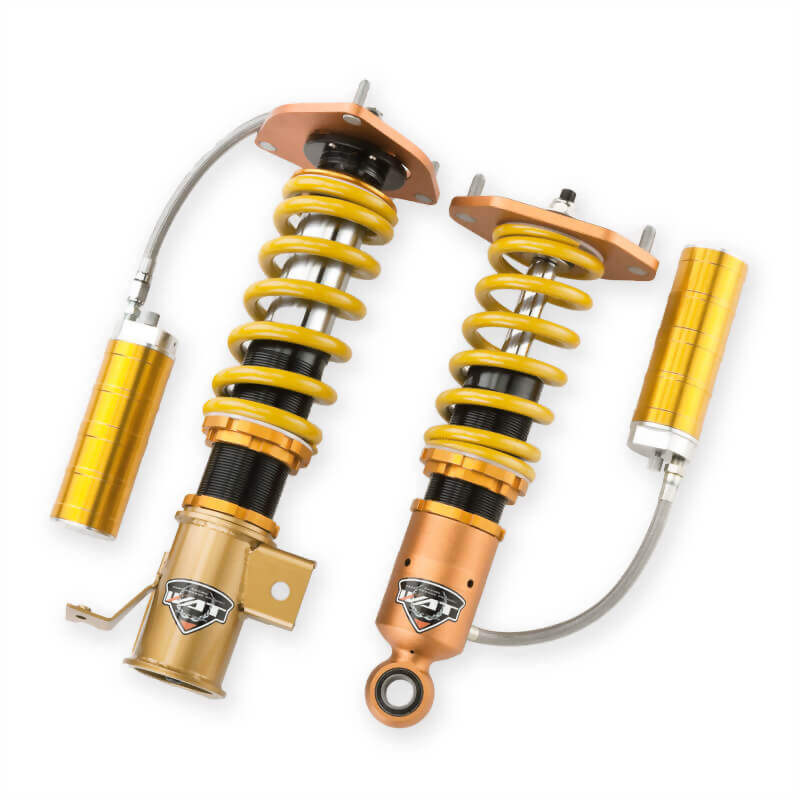

2 way adjustable type External Reservoir dual piston suspension
. Compress 12 level with 40 step rebound adjustable , can let user adjust the damping smooth. WAT unique design over the world, can do custom shocks for each customer.
. Compress 12 level with 40 step rebound adjustable , can let user adjust the damping smooth. WAT unique design over the world, can do custom shocks for each customer.
- Hand build suspention system.
- Ø57m design can fit 90% of market car model.
- 40 level damper adjustable.
- Standard pillow ball camber plate for front Macpherson system (some model may not provide.)
- High quality pillow ball to avoid the unusual sound.
- 57mm standard mono tube with 50mm piston.
- Ø20mm spindle rod for both Macpherson and A arm system.
- SAE9254 Japan steel cold band spring. Less spring rigid recession.
- Fully adjust design, to adjust the ride high by low mount, do not need to adjust the ride by spring preload.
- Use the spring bearing (optional) to avoid the unusual sound when turning the steering wheel.
- Square thread on tube to avoid the rust stuck problem.
- Aluminum top plate for less weight.
- One forming aluminum forged A ARM low mount, less weight stronger rigidity
- Italy damper oil, working temperature from -30℃~220℃
- Japan seal, 10 million cycle test no leaking.
- Unique damper and travel for each model.
- Custom damping is acceptable.
